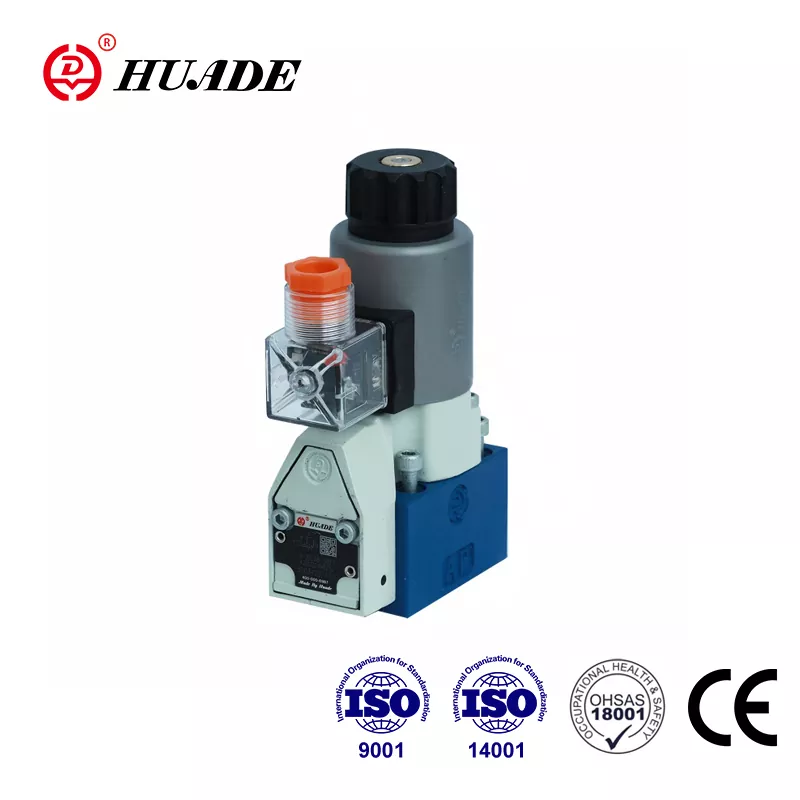

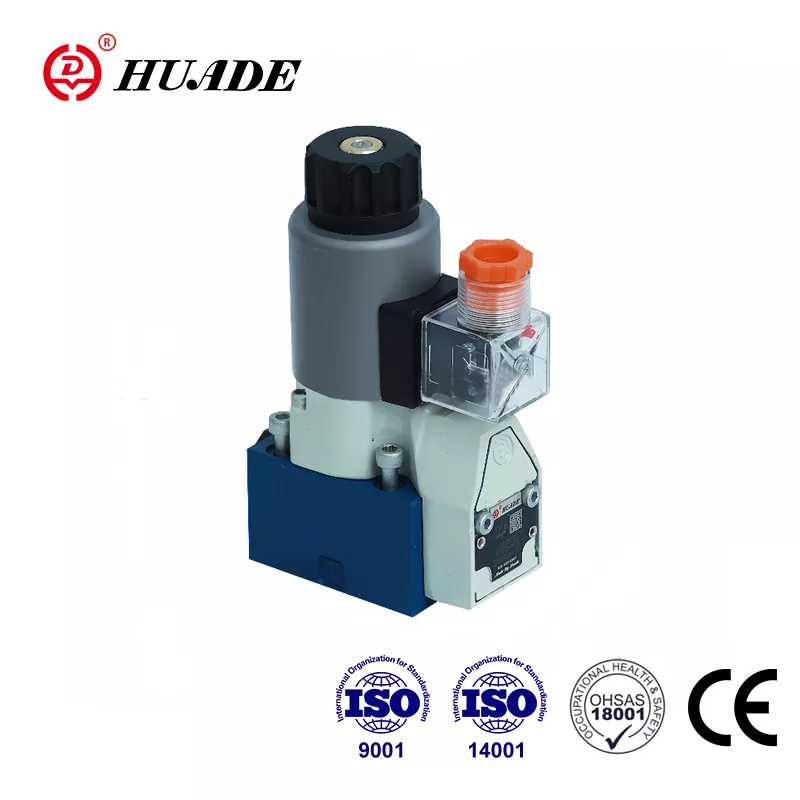

Hydrau Hydrau est ducit manufacturer in Sinis scriptor hydrau industria et habuit duos diu-term cooperante experientia cum Rexroth ex MCMLXXIX. Huade® Directional Series Type M-M-SEW VI pars seriem 3x. Est competitive cum bono qualitas et minus pretium. Ut summus qualitas Hydrau products, Haade Hydrau operatur plus quam DCCL pieces Advanced productio apparatu importari ex toto orbe terrarum. Qualis est solenoid operated valvae potest omnino conformis customers requisita. Factory transivit internationalis signa, nimirum, iso9001, iso14001 et o sas18001. In serie directional valvulae late in variis industriae environment.
|
Technical data (nam applications extra haec parametri, placere consulere nobis!) |
|||
|
Generativus |
|||
|
Installation |
libitum |
||
|
Max. Ambientium temperatus (℃) |
50 |
||
|
Pondus |
II / II-modo Poppet valvae (kg) |
1.5 |
|
|
III / II-modo Poppet valvae (kg) |
1.5 |
||
|
IV / II-modo Poppet valvae (kg) |
2.3 |
||
|
Data HYDRAULICUS |
|||
|
Max. Operating pressura (MPa) |
Vide mensam in pagina CXL |
||
|
Max. Fluunt (l / min) |
25 |
||
|
Pressura fluidum |
Mineralis oles et phosphate Ester |
||
|
Pressura fluidi temperatus range (℃) |
- XXX ad LXXX |
||
|
Viscosity range (MM² / s) |
2.8 ad D |
||
|
Gradum contaminationem μm |
Maximam permissibilis gradum contaminationem de hydrau liquor ad Nas MDCXXXVIII genus IX. Nos igitur suadeo filter cum minimum retention rate of Β1≥ LXXV. |
||
|
Notitia electrica |
|||
|
Typus de voltage |
DC |
Ac |
|
|
Praesto voltages (v) |
12,24,42,96.10,205.220 |
Tantum fieri potest via rectifier |
|
|
Voltage TOLERATIO (Voltage Nominis) (%) |
± X |
||
|
Power consummatio (W) |
30 |
||
|
Officium |
C% |
||
|
Switching ad ISO (VI) CDIII |
Vide mensam infra |
||
|
Switching Frequency (Cicero s / h) |
15000 |
||
|
Donec ad Laudate XL L |
Ip65 |
||
|
Max. Coil temperatus (℃) |
ad CL |
||
Features:
Direct Directional ▶ Poppet valvae, solenoid actuated
▶ clausa Portus est Leak-Free
▶ Switching est ut etiam post longum periodum esse sub pressura
▶ solenoid coil potest rotentur a XC °
▶ singula electrica nexu
▶ cum protected manus override, libitum
▶ porting exemplar ad Laudate XXIV CCCXL forma A, ISO (IV) CDI et Cetop - RP 121h
Application:
In II type m, sew directional valvae est solenoid actuated directional poppet valvae. Et control initium, subsisto et directionem fluxus.
I. Functiones, sectione poppet directional valvae m, sew VI
M-SEV VI basically consistit de habitationi (I), in solenoids (II), et induravit valvae system (III) et pila (s) (IV) et claudendo elementum.
Basic principium:
In initial positus pila (IV) premitur onto in sedem a vere (IX) et in switched situ per solenoid (II). Quod Solenoid (II) Force Acts Ver Vectis (VI) et pila (VII) in actuator pin (VIII), quae signatus duo utrimque. Et thalamum inter duas signantes elementa connexa cum Portus P. et valvae ratio (III) est per pressura libratum de actuating viribus (solenoid aut reditus ver). Et valvulae potest ergo adhiberi ad pressionem LXIII MPA.
Cutaway View of type M-2sew6n
Cutaway View of type M-3sew6u
