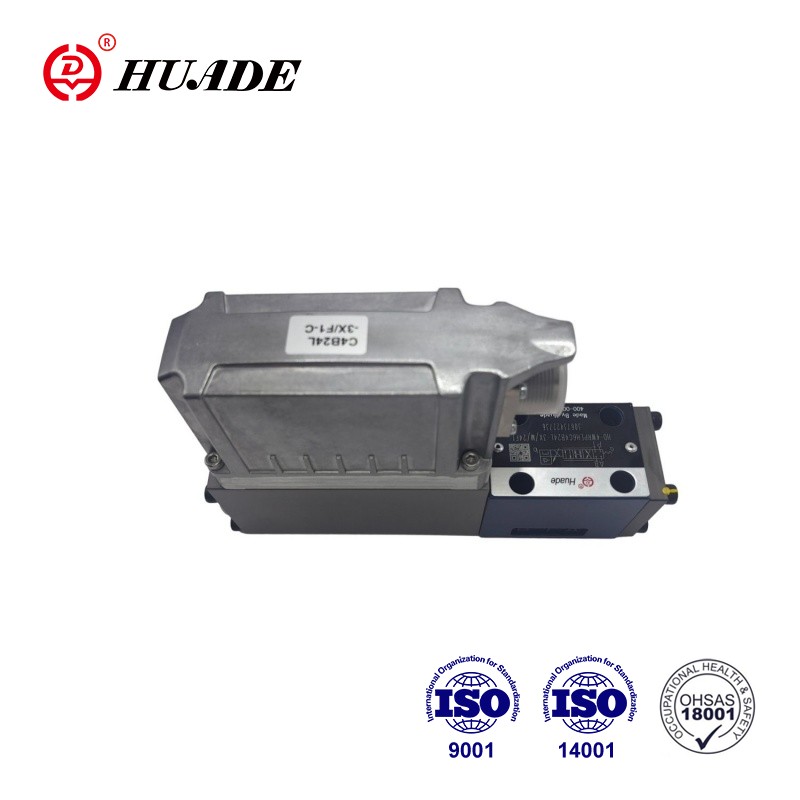

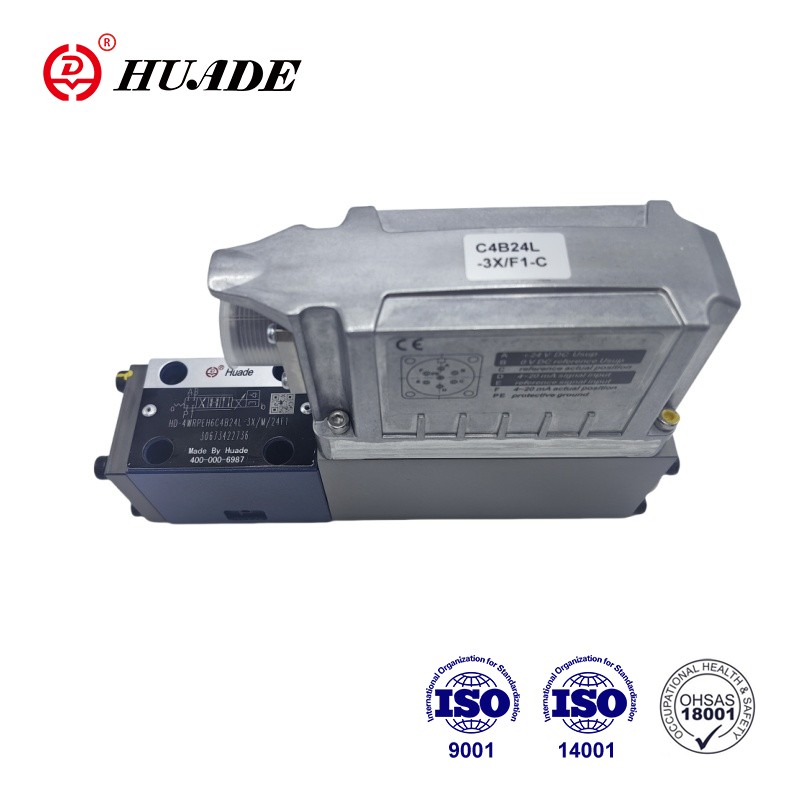

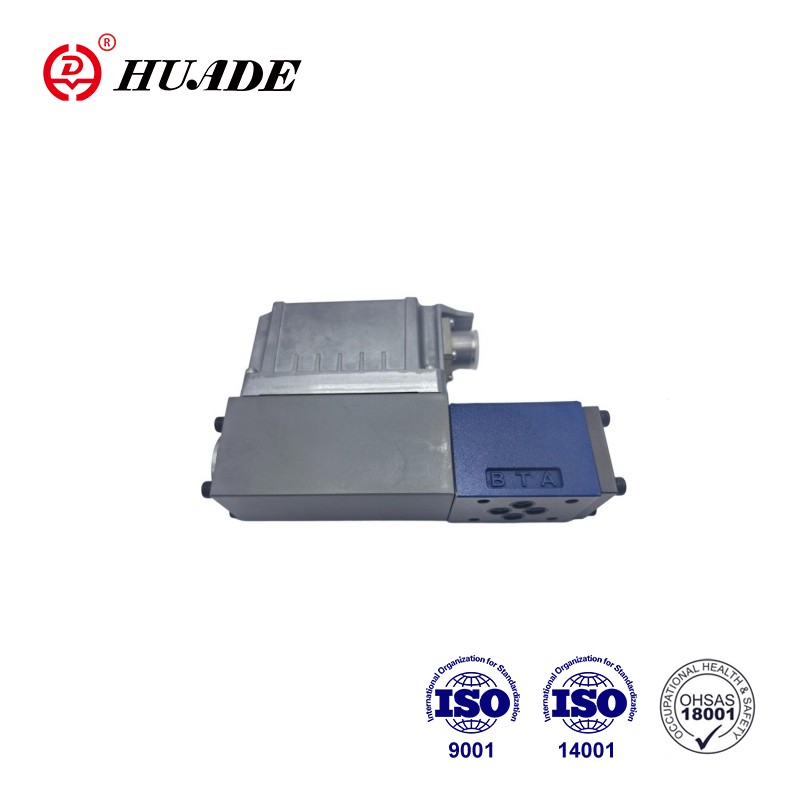

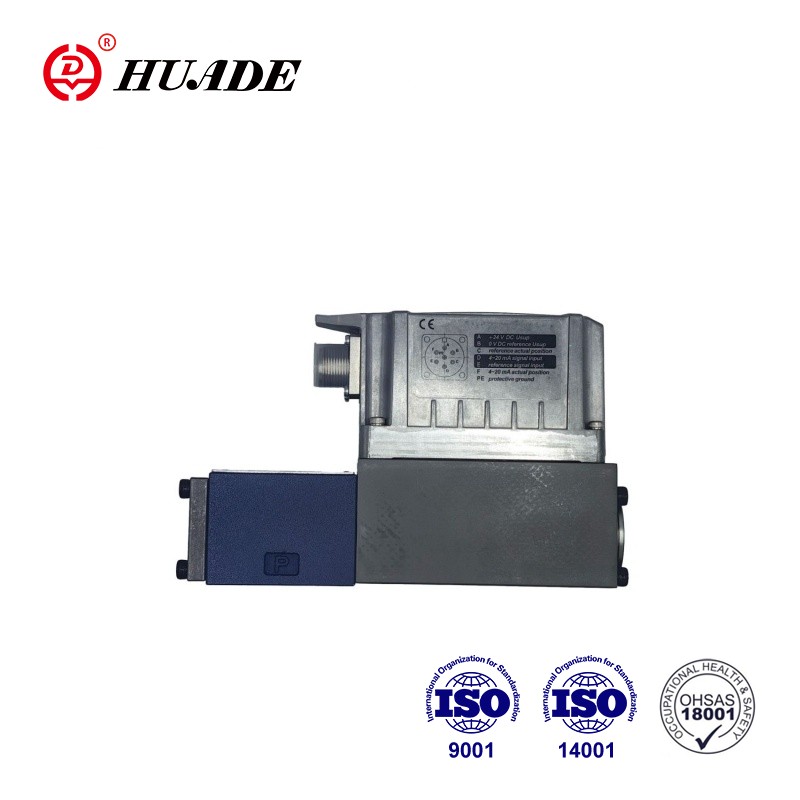

Valvulae type 4wrpeh 6-3x sunt recta operated directional imperium valvulae cum electrica situ feedback et integrated electronics (obe). Directionalis servo valvae 4Wrpeh 6-3x est summus praecisione imperium valvae quod combines proportionalem technology cum servo technology. 4Wrpeh 6-3x est late in variis processus fluit et apparatu operationes, ut Hydrau systems in PETROLEUM, eget, metallurgical et alia industries ad control variis processus fluit et apparatu operationes.
| Technical notitia | ||
| Generativus | ||
| Typus of Connection | Subplate ascendens | |
| EXPLICATUS | ISO 4401-03-02-0-05 | |
| Pondus (kg) | 2.9 | |
| Installation Position | Quis | |
| Ambientium temperatus range (° F) | -20 ... LX | |
| Onerariis temperatus (° F) | -30 ... LXXX | |
| Maxime repono tempore (annorum) | 1 | |
| Maximam relative humiditas (no condensationem) (%) | 95 | |
| Donec classis secundum EN (LX) DXXIX | Ip65 (si idoneam et bene mounted cohaeret iungo sunt) | |
| Maximum superficiem temperatus (° F) | 150 | |
| Mttfd valorem secundum ad en ISO (XIII) DCCCXLIX (annos) | CL (quia adhuc singula videre notitia sheet (DCCCXII) | |
| Sine test secundum ad Laudate en 60068-2-6 | ▶ sine damping laminam | X ... MM HZ / maximum of X g / X Cycles / III axes |
| ▶ Cum damping Plate I) | X ... MM HZ / maximum of X g / X Cycles / III axes | |
| Tumultum Testing ad Laudate 60068-2-64 | ▶ sine damping laminam | XX ... MM HZ / X GRMS / XXX G Pecco / XXX min. / III axes |
| ▶ Cum damping Plate I) | XX ... HZ / X GRMS / XXX g Pecco / XXIV H / III Axes | |
| Onerariis inpulsa secundum Laudate en 60068-27 | ▶ sine damping laminam | XV G / XI MS / III offensionibusque parvis fragile / III axes |
| ▶ Cum damping Plate I) | XV G / XI MS / III offensionibusque parvis fragile / III axes | |
| Mass secundum Din en 60068-27 | ▶ Cum damping Plate I) | XXXV G / VI MS / M Offragationes / III axes |
| Conformitas | ▶ CE secundum EMC Directive MMXIV / XXX / EU, probata secundum | Et 61000-6-2 et 61000-6-3 |
| ▶ Rohs Directive | MMXI / LXV / EU | |
| HYDRAULICUS | ||||||
| Maximum operating pressura | ▶ Portes A, B, P (Bar) | 350 | ||||
| ▶ Portus T (Bar) | 250 | |||||
| Hydraulicarius fluidum | Vide mensa in Page VII | |||||
| Viscosity range | ▶ commendatur (MM2 / s) | XX ... C | ||||
| ▶ maximum admissible (MM2 / s) | X ... DCCC | |||||
| Hydraulicorum fluidum temperatus range (volaverunt, per) (° C) | -20 ... + | |||||
| Maximum admissibilem gradum contaminationem de hydrau liquor; Munditia classis secundum ISO (IV) CDVI (c) | Genus 18/16/13 III) | |||||
| Rated fluxus (Δp = XXXV Bar per imperium Edge) IV) (L / min) | 4 | 12 | 15 | 24/25 | 40 | |
| Limitation of usu (Δp) cum de transitus ad failsafe (valores applicare ad summasque in ore gladii) | ▶ Symbols C3, C5, C (Bar) | 350 | 350 | 350 | 350 | 160 |
| ▶ Symbols C1, C4 (Bar) | 350 | 350 | 280 | 250 | 100 | |
Features:
Reliable ▶ - Probatur et Robustum Design
▶ tutum - deficient, tutum situ de potestate Spool in switched-off conditione
▶ Energy-Effusio - No Pilot oleum
▶ High Quality - Imperium Spool et Sleeve in Servo Quality
▶ flexibilia - idoneam pro loco, velocitas et pressura imperium
▶ praecise - High responsio sensitivity et parum hysteresis
▶ io-link interface, libitum. Usus valvae cum Io-link ut clausa-off elementum ad genus III, PL D secundum CH 13849-1.
Application:
Directionalis servo valvae 4Wrpeh 6-3x est late in agro Industrial automation, ventus turbines, machina instrumentum imperium, ipsum machinatione, aerospace, shipbuilding et marine ipsum.
SECTUS
HD-4wrpeh summus responsio valvae maxime consistit;
▶ CYMVE habitationi cum Imperium FUSUS et sleeve in servo Quality (I)
▶ imperium solenoid cum situ transducer (II)
(Optionally cum electronics praesidio membrana (V))
▶ in-Board Electronics (obe) (III) cum Analog et Io-link interface (IV) (optionally cum unguenti
Plate (VI))
Munus
Integrated electronics (obe) comparat ad certum imperium valorem ad locum ipsam valorem. In casu de potestate deviationes, in plaga solenoid non activated. Ob mutata solenoid vis, in potestate FUSUS est accommodetur contra fontem. Stroke / Imperium FUSUS Cross-sectionem est continet proportionaliter ad imperium valorem. In casu de imperio valorem premetting of 0, in electronics adjusts ad imperium spool in vere ad centralis situ. In deactivated conditio, vere est ad maximum et valvae in defluit, tutum situ.
Munus (Io-link clausa-off)
Per claudere off copia voltage ad Io-Link Magister (Class B, Portus), paxilli II et V, in IO-Link CYMBALON potest esse securus switched off. Post clausa-off copia intentione, imperium Spool valvae sit deficere tutum situ. Ut etiam praestare Hydraulicorum Permovetur pro salute clausa-descendit, et LINTLAP potestate Spool / Sleeve quoque considerandum est.
Sufficit Overlap est praestatur a symbolis C3, C5, C4 et C1.
Tutus clausa est pars IO link CYMBALONE et debent rationem tutum consilium machinatione.
Imperium solenoid clausa-off
In casu de his erroribus, in potestate solenoids sunt de-energized per integrated electronics (obe) et imperium Spool est profectus est, tutum situ:
▶ cadit infra minimum copia voltage
Tantum ▶ interface "F1"
- Falling sub Minimum Current Imperii Value De II MA (includit cable et imperium valorem linea (current loop))
Tantum ▶ interface "L1"
- Admitte inertes, Communication Interruption (Watchdog)
- In casu de internum Io-Link Error
Tantum ▶ interface "C6"
- Praeterea, release sedentes
Damping laminam "d"
Et damping laminam reduces accelerationis amplitudo in on-tabula electronics (Frequencies> CCC HZ).
Notitia:
Usus unguento laminam non commendatur applications cum maxime humilis frequency excitatio
Electronics Tutela membrana "-967"
Ne condensate formationem in habitationi de integrated electronics (obe), an electronics protegas membrana (V) potest esse.
Commendatur pro usu extra industriam, vexillum condiciones cum excelsum ambientem aer humiditas et significant cyclic temperatus mutationes (e.g. foris).
