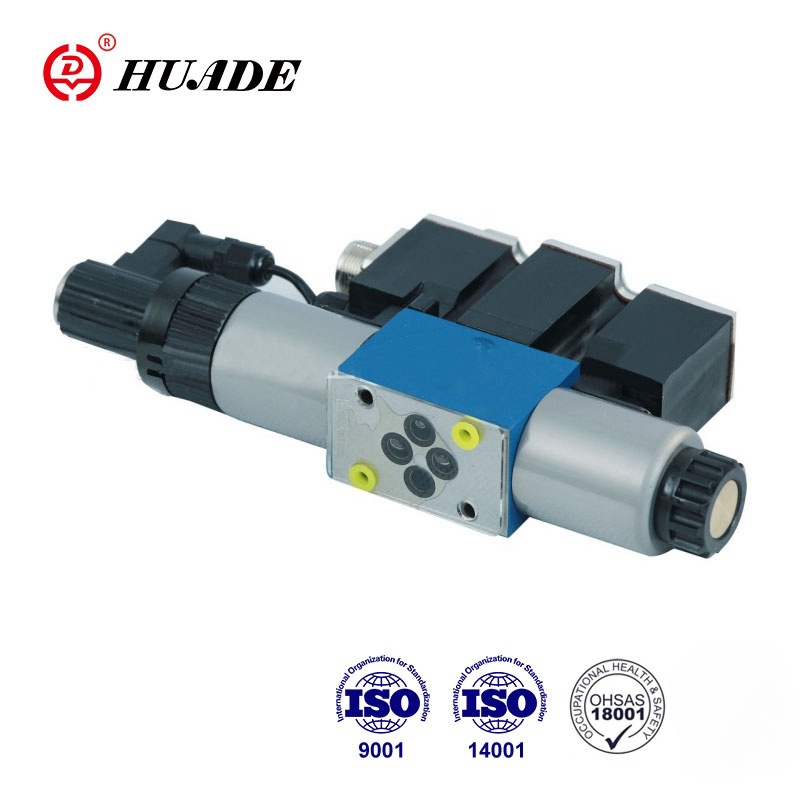

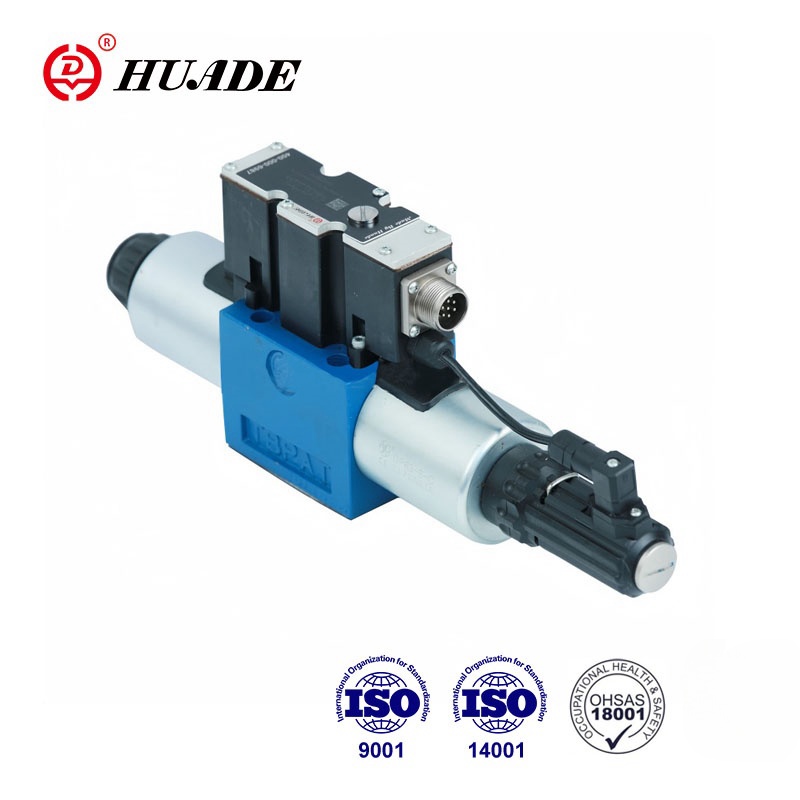

Hanc proportionalem valvae 4wre-2x est proportionalis directional valvae cum directe-agens proportionalem solenoid, quod est ad control fluunt rate et influunt directionem de hydraulico oleum. Habet proprietates pulchra specie. Securus utor proportionalis valvae 4wre-2x. Users tantum postulo ut utor a septem-core obturaculum ad eam, et simul solvere matching of electro-hydraulicis, quae conducit ad applicationem bus control technology.
| HYDRAULICUS | |||
| Magnitudo | 6 | 10 | |
| Operating pressura | Portus A, P, B | 31.5 | 31.5 |
| Portus T | 21 | 21 | |
| Nominal fluxus qvnom ad △ p = 1Pa (l / min) | 8,16,32 | 25,50,5,75 | |
| Max. Permissibilis fluxus (l / min) | 80 | 180 | |
| Gradu contagione (μm) | ≤20 (suadeo X) | ||
| Hysteresis (%) | ≤0.1 | ||
| Reversal span (%) | ≤0.05 | ||
| RESPONSIO Sensitivity (%) | ≤0.05 | ||
| Pressura fluidum | Mineralis olea, phosphate Ester | ||
| Viscosity range MM2 / s | XX ad CCCLXXX | ||
| Ambientium temperatus rhoncus (℃) | 4wre | -20 ad CD | |
| 4wree | -20 ad C | ||
| Pondus (kg) | 4wre | 2.2 | 6.3 |
| 4wree | 2.4 | 6.5 | |
| Electrical (Integrated Electronics) | |||
| Magnitudo | 6 | 10 | |
| Supple Typus | DC | DC | |
| Voltage nominis (V) | 24 | ||
| Nominal vena solenoid (a) | 2.5 | ||
| Solenoid coil resistentia (Ω) | Ave resistentia ad XX ℃) | 2.7 | 3.7 |
| 4.05 | 5.55 | ||
| Officium | C% | ||
| Max.coil temperatus (℃) | ad CL | ||
| Linnaeus ad Din40050 | Ip65 | ||
| Technical notitia de consociata Amplifier | |||
| Consociata amplifier | 4wre | HD-VRPA2 -.- 1X / | HD-VRPA2 -.- 1X / |
| 4wree | HD-VT-4wree6-2x | HD-VT-4wree10-2x | |
| Copia voltage | Nominal VDC VDC | 24 | |
| Minus limitandi valorem V | 19.4 | ||
| Superioris limitandi valorem V | 35 | ||
| Amplifier potentia | Imax est | ||
| Impetus current est | 3 | ||
Features:
▶ directe dispensata proportionalem directional valvae ad imperium directionem et magnitudinis fluxus
▶ pro Subplate Umbra
▶ electrica situ feedback
▶ vere sitas potestate FUSUS
▶ Type 4wree, integrated valvae electronics cum interface A1 vel F1
▶ agitatum est proportionalem solenoids cum centralis filum et amovibiles coil
▶ valvae et electronic imperium ab uno fonte
Application:
Proportionalem directional valvae 4wre-2x late in variis agris ut machine instrumenta, lux industria, metallurgy, metalla, aerospace, etc.
4/2 4/3 directionalis valvulae directe components subplate consilio.
Sunt operabantur proportionalem Solenoids cum Central filum et amovibiles coil. Et solenoids sunt optionally imperium aut externum imperium electronics (typus wre) vel per integrated imperium electronics (type WRE).
Eget Description:
Cum solenoids (V et VI), de-energizing, in potestate Spool (II) tenendum in centralis situ per compressionem Foret (III et IV)
Direct operationem in potestate FUSUS (II) per energising unum proportionalem Solenoids, E.G. Imperium solenoid "B" (VI)
→ motus in potestate Spool (II) ad sinistram in proportionali electrica input signum
→ Connection a P ad A et B to T per orificium sicut crucem-sectiones cum progressivum fluunt characteres
De-energising solenoid (VI)
→ in potestate Spool (II) est rediit ad Central Position via ad compressionem Spring (III)
HD-4WRE ... A-2x
In de-energizing conditio in spool (II) tenendum in mechanica centrum situ per solenoid reditus. Hoc enim in FUSUS Symbolum "V", non referunt ad Hydraulica centrum positus! Cum electrica valvae clausit loop control Circuit clausit tunc in spool sit positus in hydrau centrum situ.
Design:
Valvae basically est:
• Housing (I) in monteinq faciem tuam
• Imperium FUSUS (II) cum compressionem Foret (III et IV)
• Solenoids (V et VI) cum Central Thread
• Position Transducer (VII)
• Libitum integrated imperium electronics (VIII)
• Quod mechanica nulla punctum temperatio (IX) est accessible per PG 13,5 et electrica nulla punctum est accessible per PG VII (X) (Type 4Wree)
Symbolum proportionalem directional valvae 4wre-2x
