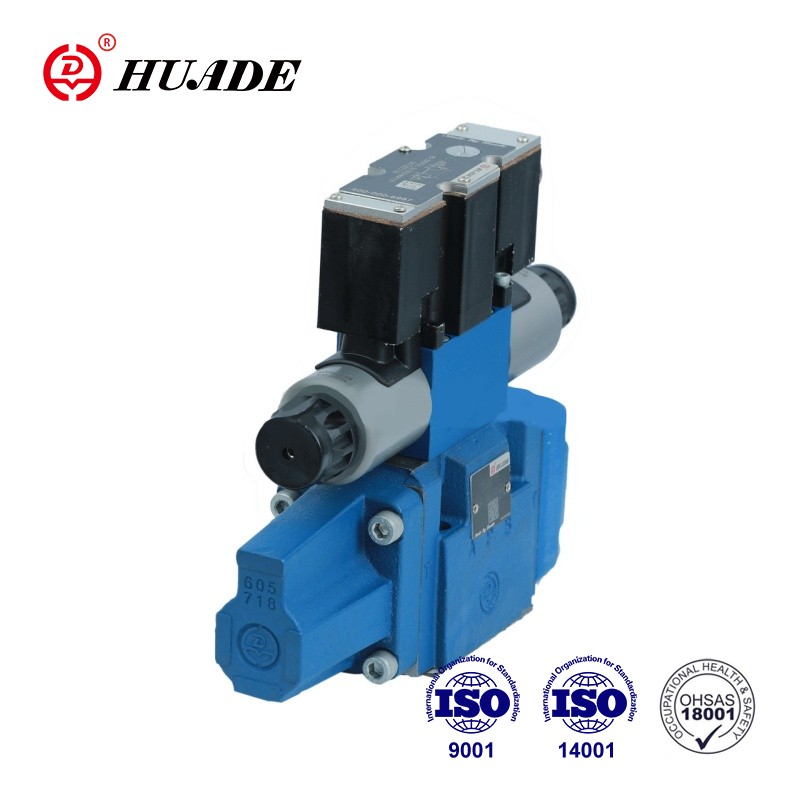

In genus HD-4wrze valvulae sunt gubernator operated IV-modo valvulae, quae actuatur per solenoids, non control directionem et rate of fluunt. Hoc proportionalem directional valvae habet excelsum cost perficientur. Factory instructum est ad provectus productio apparatu ex toto orbe terrarum et habet rigorous probationem operandi ratio ut firmum perficiendi cuiusque proportionalem valvae.
| HYDRAULICUS | |||||
| Nomini | 10 | 16 | 25 | 32 | |
| Operating pressura | gubernator oleum copia externum | III ~ X | |||
| -Pilot CYMBALON (MPA) | gubernator oleum Supple Internum | X ~ 31.5 | X ~ XXXV | ||
| -Main CYMBALON (MPA) | 31.5 | 35 | |||
| Revertere linea pressura (MPa) | Portus T (gubernator oleum exhaurire extermal) | 31.5 | 25 | 25 | 15 |
| Portus T (gubernator oleum exhaurire intermal) | 3 | ||||
| Portus y | 3 | ||||
| Gubernatori oleum Volubilis (CM3) ad FUSUS motus 0 C% | 1.7 | 4.6 | 10 | 26.5 | |
| Gubernator oleum fluxus ad Portus X et y (l / min) pro egressus forma initus signa 0 ~ C% | 3.5 | 5.5 | 7 | 15.9 | |
| Influunt per principalis valvae (l / min) | 170 | 460 | 870 | 1600 | |
| Hysteresis% | ≤6 | ||||
| Pressura fluidum | Mineralis OI1 ad LI LI DXXIV | ||||
| Pressura fluidi temperatus range (℃) | -20 ~ LXXX | ||||
| Viscosity range (MM2 / s) | XX ~ CCCLXXX | ||||
| Installation | libitum, potissimum horizontali | ||||
| Pondus enim version wrz ... (quia wrze "Praeterea 0.2kg) | 7.8 | 13.4 | 18.2 | 42.2 | |
| Electrica | |||
| Type CYMBALON | Sep | Subtruo | |
| Voltage Type | DC | ||
| Max.current (a) | 1.5 | 2.5 | |
| Solenoid coil resistentia (Ω) | Frigus valorem ad XX ℃ | 4.8 | 2 |
| Max.warm valorem | 7.2 | 3 | |
| Praesidium | Ip65 | ||
| Coil temperatus (℃) | ad CL | ||
| % | 100 | ||
| Imperium electronics | HD-VT-VsPa2-50-1X /. | Integrated imperium electronics | |
Features:
▶ gubernator operated proportionalem directional valvae
▶ pro Subplate Umbra
▶ imperium directionem et rate of fluxus
▶ vere sitas potestate FUSUS
▶ valvae et proportionalem electronics ex uno fonte
Application:
HD-4wrze valvulae adhibetur ad control directionem et influunt.
Plectrum basically complectitur: gubernator valvae ①, pelagus Spool ④ principalis valvae ⑥ et centrum ver ③. With the solenoid B in the de-enegised condition the control spool ② move to the right.The pilot oil supply to the pilot valve is internal via port P or external via port X. Pilot oil flows via the pilot valve ① into the pressure chamber and moves the main spool ④ in proportion to the electrical input signal.The connection from P to A and from B to T is via orifice type cross-sections with progressive flow characteristics.
Cum solenoid est in de-enegased conditio pelagus FUSUS moventur ad sinistram in nexu de P ad B et a T. de-Selenoid, in potestate spool et gubernatori spool ④ sunt motus in centrum positions.
Symbolum proportionalem directional valvae 4wrze-7x
Gubernator oleum copia
