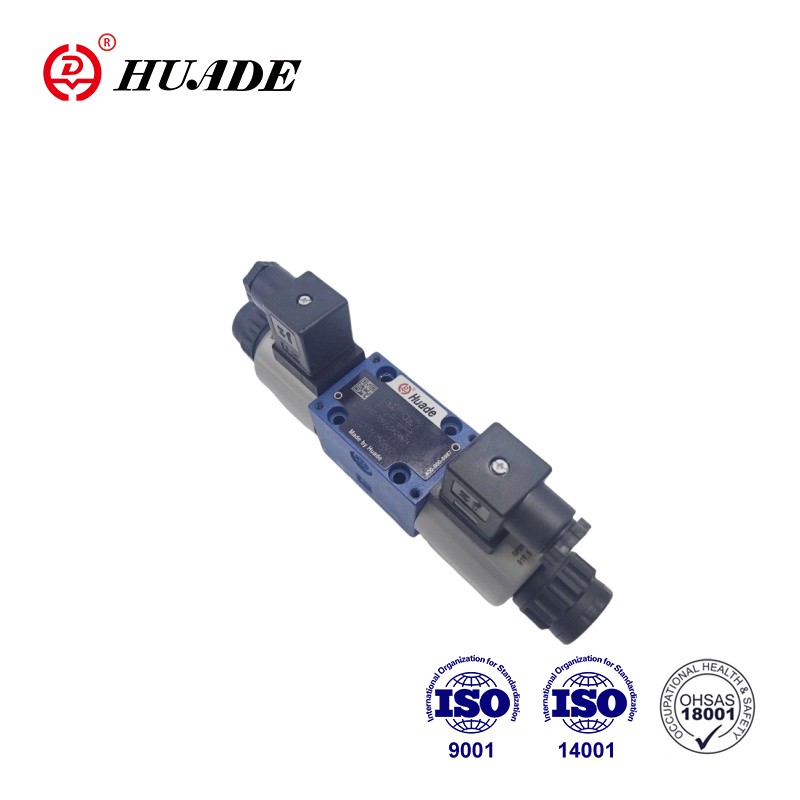

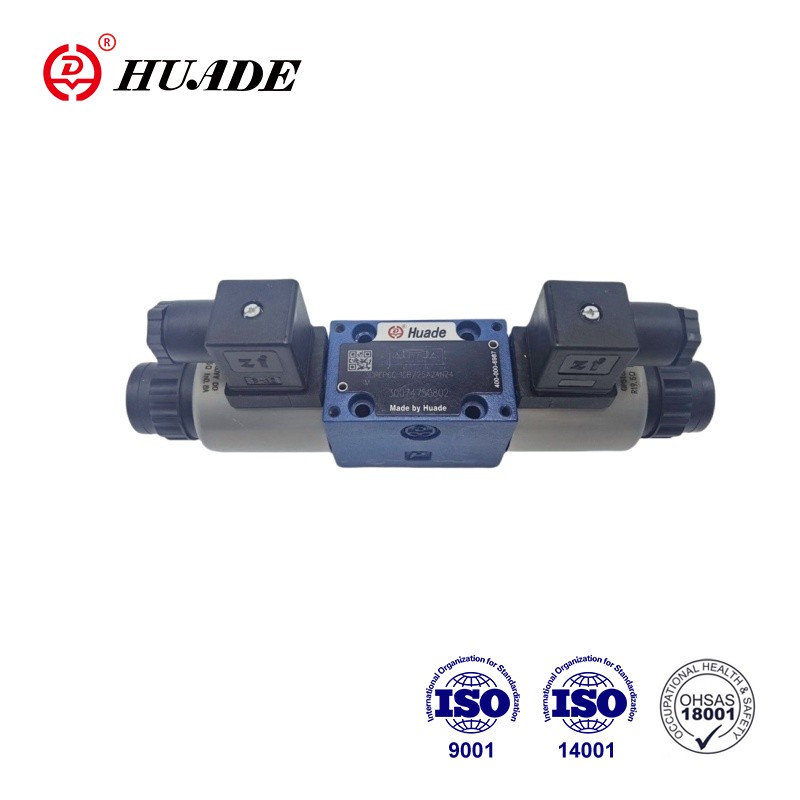

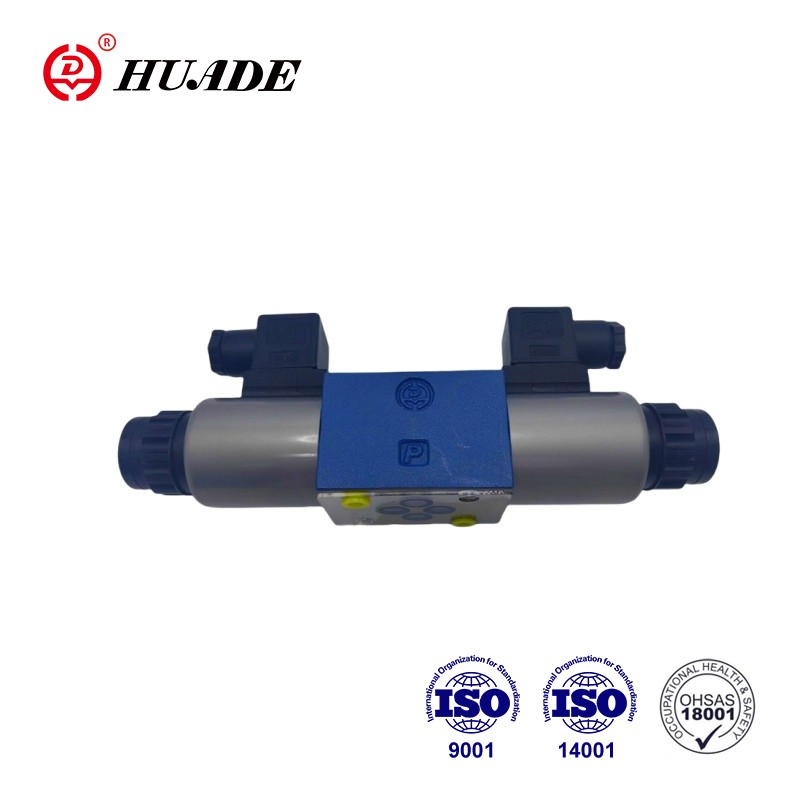

In III-via pressura reducendo valvae type 3Drep 6B est directe actum per proportionalem solenoids. Et convertam in electrica input signum in proportionalem pressura output signum. DC solenoids proportionalis sunt in calefacebo et calefacit in Selenoids cum Central filum et removeri coil. Selenoids sunt regitur optionally via externum imperium electronics.
| HYDRAULICUS | ||
| Operating pressura (MPa) | Portus P | X, si excess X, tunc installate in valvae, typus zdr6dp ..- 30b / ... in initus portum |
| Portus T | 3 | |
| Max.flow (l / min) | XV (Δp = 5MPa) | |
| Gradu contagione (um) | Filter commendaticiis cum minimum retention rate of Β1≥ LXXV | |
| Hysteresis (%) | ≤3 | |
| Repeatability accurate (%) | ≤1 | |
| RESPONSIO Sensitivity (%) | ≤1 | |
| Reversal span (%) | ≤1 | |
| Pressura fluidum | Mineralis oleum (nam NBR sigillum), PHOSPHATE Ester (nam FPM sigillum) | |
| Viscosity range (mm2/ S): | 2.8 ad CCCLXXX | |
| Pressura fluidi temperatus range (° F) | -20 ad CD | |
| Installation | libitum, potissimum horizontali | |
| Pondus (kg) | Typus C, 2.6; Type A.B: 1.5 | |
| Electrical, Solenoid | ||
| Copia voltage | Dc24v | |
| Nominal current per solenoid (a) | 0.8 | |
| Max.current per solenoid (a) | ≤0.02 | |
| Solenoid coil resistentia (Ω) | Frigus valorem ad XX ° C | 19.5 |
| Max. calidum valorem | 28.8 | |
| Opus | continuus | |
| Condition temperatus (° F) | ~ + L | |
| Coil temperatus (° F) | ~ + CL | |
| Donec Din40 L | Ip65 | |
| Electrica hospites | 3drep | Cum component plug ad Din43650-Am2 obturaculum, in Iungo ad Laudate XLIII DCL, Af2 / PG11 |
| 3drepe | Cum componentia plug ad E din43563, am6-3 obturaculum, in iungo E Din43563, BF6-3 / PG11 | |
Features:
▶ directe dispensata proportionalem valvulae ad imperium de pressura et directionem de fluxus
▶ actuated via proportionalem solenoids cum centralis filum et amovibiles coil
▶ vere sitas potestate FUSUS
Application:
Tres-via proportionalem pressura reducendo valvae 3drep 6b late in productione apparatu in PETROLEUM, eget, pharmaceutical et alia industries.
◆Design:
CYMBALE maxime complectitur:
◆Function:
Cum solenoids (I et II) de-ageret imperium FUSUS (V) tenendum in centrum situ per compressionem fontes.
In potestate FUSUS (II) est directe actum cum unus de solenoids est energized.
E.g. Per Energising Solenoid "A" (I)
→ pressura mensuræ FUSUS (V) et potestate Spool (IV) movere ad dextram quantum ad electrica input signum.
→ in nexu ex P ad B et ad T est per orificium forma crucem-sectiones cum progressivum fluunt characteres
◆De-Serenensium SOLENDOID (I)
→ in potestate Spool (IV) est ad suum centrum situ per compressionem fontes
In medio positus hospites A et B ad T sunt aperta igitur pressura fluidi potest libere fluere ad tristique. An optional manus overrides facit potest movere in potestate Spool (IV) sine energising solenoid.
●Operam!
Unintended usu manus override potest facere immoderatus apparatus motus!
Symbola proportionalem pressura reducendo valvae 3Drep 6b
