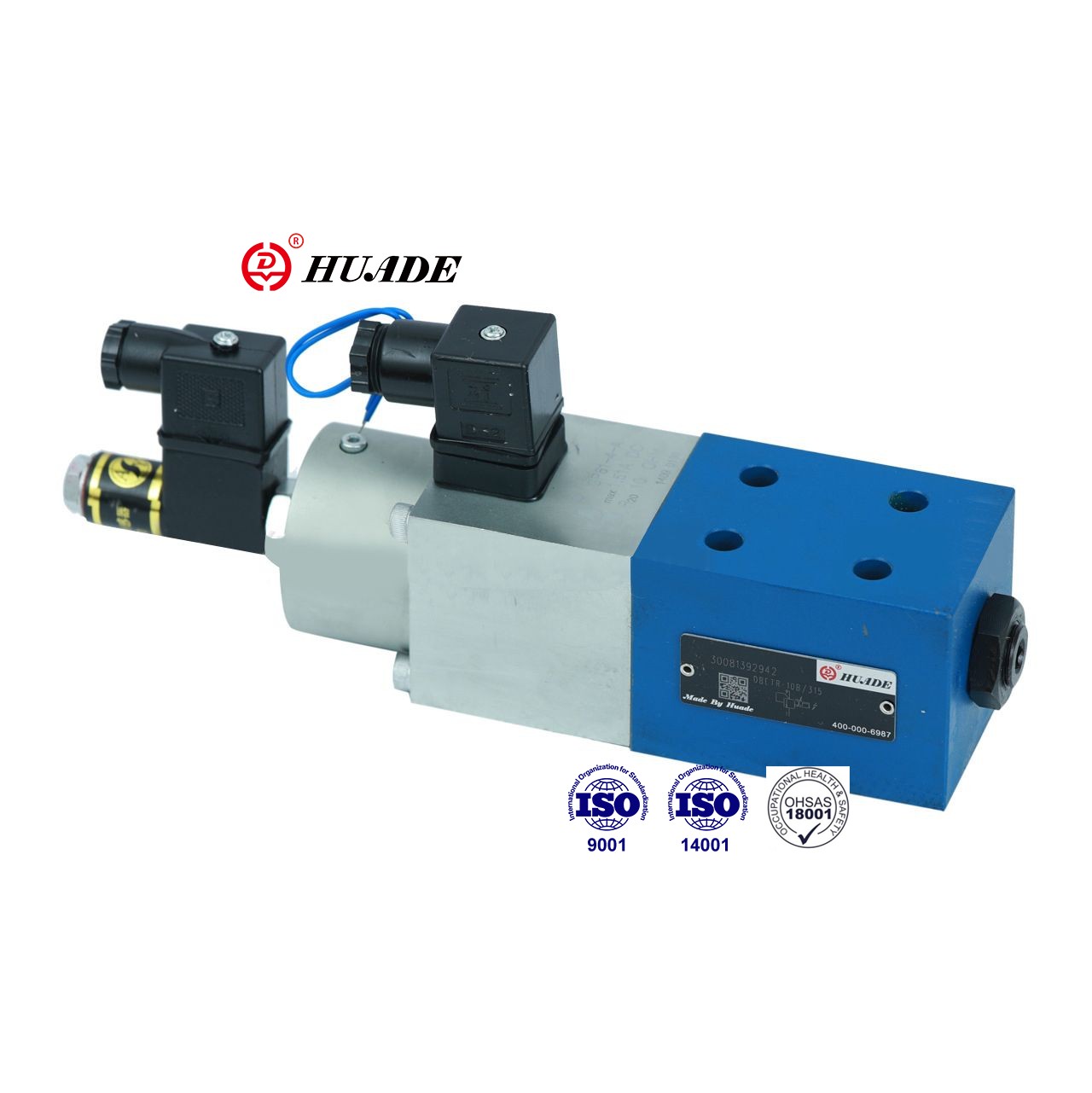

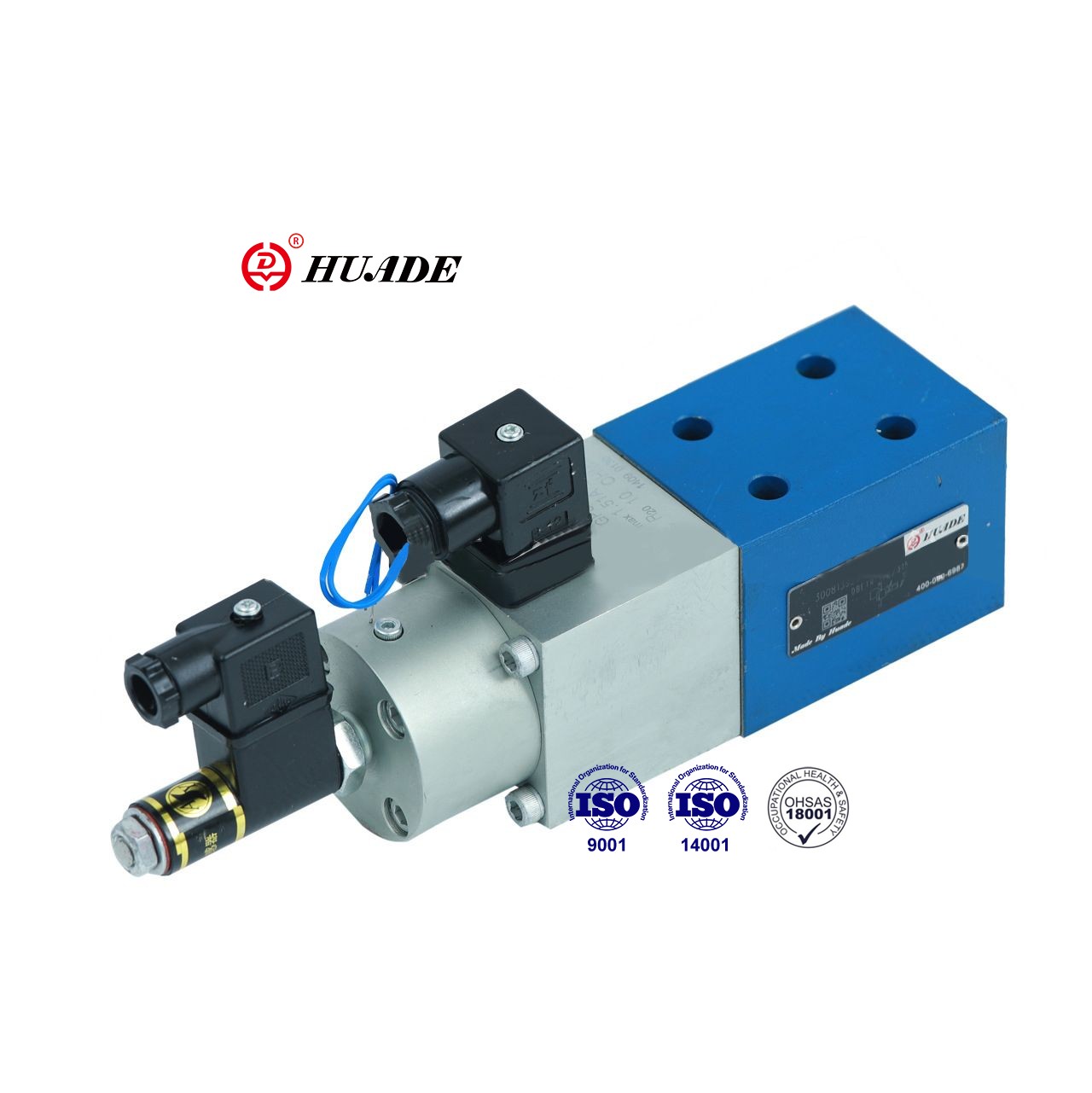

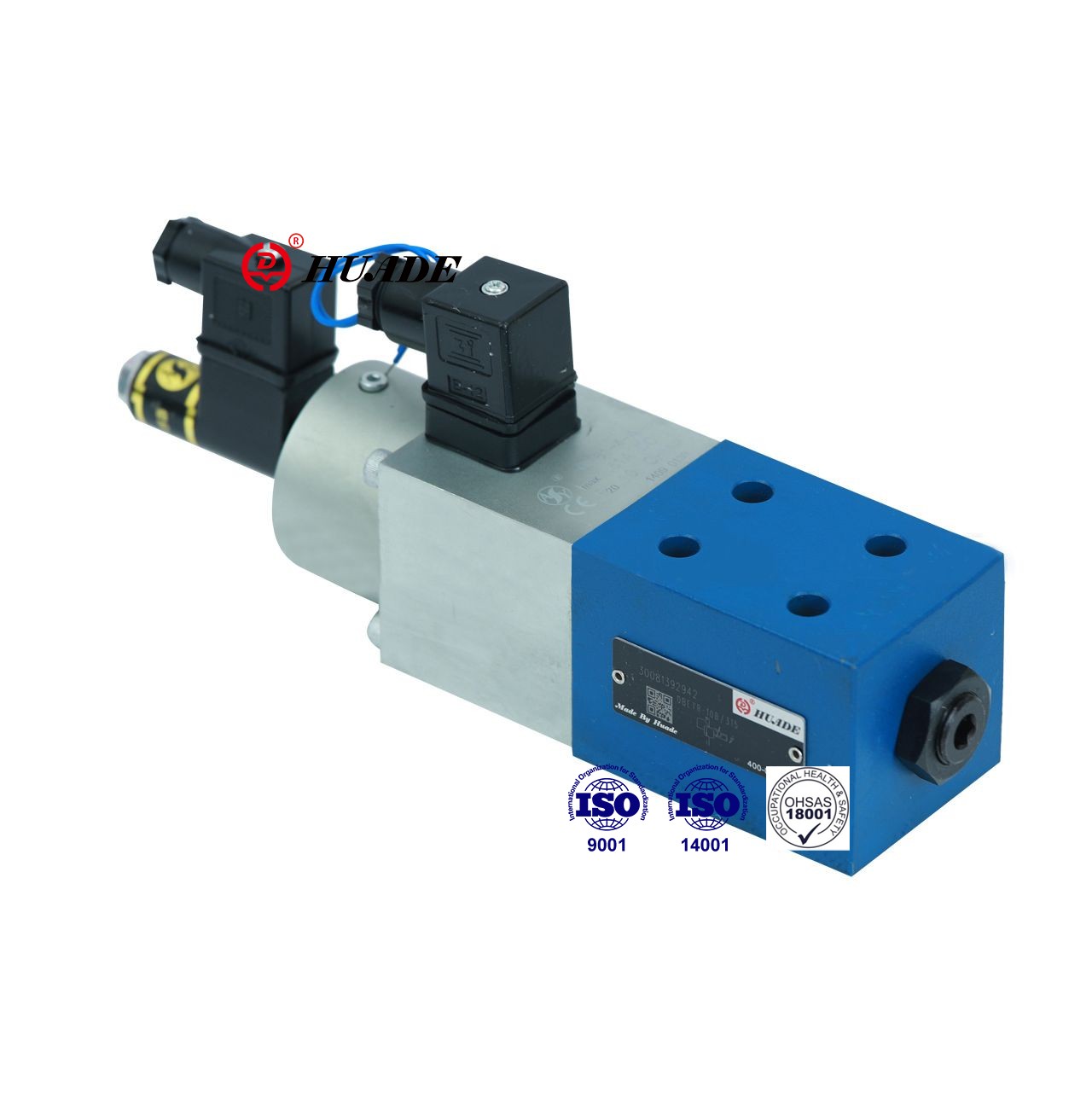

Haec pressionis proportionalis valvae DBETR subsidio pressionem moderatur pro ratione pretii electrici mandati. DBTR valvae late in systematibus clausis cum systemate pressione remota. Huade DBETR valvulae iisdem signis utuntur quibus Rexroth producta. Haec valvae proportionalis pressionis DBETR producta in eadem serie restitui potest, et pretium relative parabilis est.
| Hydraulic | |||
| Maximilianus. certa pressura (MPa) | Pressura scaena 2.5 MPa | 2.5 | |
| Pressura gradu 8.0 MPa | 8 | ||
| Pressura scaena 18.0 MPa | 18 | ||
| Pressura gradu 31.5 MPa | 31.5 | ||
| Min. certa pressura (MPa) | (Vide lineae) | ||
| Max.Operating pressura (MPa) | portum T (cum pressura adjusting) | 0.2 | |
| portum T (sine pressura adjusting) | 10 | ||
| portum P | 31.5 | ||
| Max.flow (L/min) | Pressura gradu XXV " | 10 | |
| Pressura scaena LXXX | 3 | ||
| Pressura scaena 180 | 3 | ||
| Pressura gradu 315 | 2 | ||
| Contaminationis gradus (μm) | ≤20 (commendatio 10) | ||
| Hysteresis (%) | < 1 of max. stabilis pressura | ||
| Repetitio (%) | <0.5 de max.settable pressura | ||
| Linearity (%) | 180; Pressura gradu a III ad XVIII MPa | ≤ 1.5 de max.settable pressure | |
| 315; Pressura scaena ab VI ad 31.5MPa | |||
| Variatio typica (%) | Valvae | ±3 of max. stabilis pressura | |
| Electrica potestate | 0.5 | ||
| Egressus responsio ad C% 0 (ms) | Responsio temporis (Pmin-Pmax) | Responsio temporis (Pmax-Pmin) | |
| Pressura scaena 2.5 et 18MPa 0 to100 | 100 | 50 | |
| Pressura scaena 31.5MPa 0 to100 | 150 | 100 | |
| Pressura fluidi | Oleum minerale (pro sigillum NBR), Phosphate ester (pro FPM sigillum) | ||
| Viscositas range (mm2/s) | 2.8 ad 380 | ||
| Pressura fluidi temperatus range (°C) | -20 to+70 | ||
| Institutionem loco | ad libitum | ||
| Pondus (kg) | 4 | ||
| Electrical | ||||
| Amplifier consociata | VT-5003S30 | |||
| Supple voltage | DC | |||
| Resistentia Coil (Ω) | Frigus valorem XX °C | 10 | ||
| Maximilianus. calidum valorem | 13.9 | |||
| (Respublica Working) Officium | Continuus | |||
| Pressura fluidi temperatus (°C) | +50 | |||
| Amplifier voltage | commutare omnino | 24±10% | ||
| commutare tres electrica fonte | 24 ad 35 | |||
| Maximilianus. potentia consummatio (VA) | 50 | |||
| Coil resistentia 20°C (Ω) | 1 | 11 | 111 | |
| 56 | 56 | 112 | ||
| Inductivity (transducer) (mH) | 6 ad 8 | |||
| Oscillator frequentiae (transducer) (KHz) | 2.5 | |||
| Praesidium DIN 40 050 | IP65 | |||
Features:
Low hysteresis
Bene repeatability;
Electrical clausa ansa positionis imperium veris pre-tensionis
▶Proportional solenoid actio inductiva situ transducer (pressura libratum)
Valvae et electronic imperium ex uno fonte
Applicatio:
Pressura proportio valvae DBETR levatio late in variis campis adhibetur, sicut industria levia, instrumenta machinae, metallurgia, etc.
Valvula plerumque habitationi consistit (1), solenoideo proportionali (2), cum transducer positivis positivis (3), valvae cathedra (4) et valvae poppet(5).
Pressio ponitur valorem imperium potentiometer aptando (0 ad 9 V). Adaptans imperium valorem causat tensiones compressionis vere per electronicas potestates et solenoides proportionales (2). Tensio compressionis ver (6), i.e. positio laminae fontis (7), determinatur ab inductivo transducer positionali (3). Deviationes quaevis a valore praecepto corriguntur per ansam clausam situm imperium.
Usus huius principii elidit effectum friction solenoidum.
commoda:
- Minimum hysteresis
- bonum repeatability
Signa Pressurae Proportional Solamen Valvae DBETR
