Proportionalem pressura reducendo valvae 3Drem-7x

3Drem-7x est tria-modo gubernator, operated proportionalem pressura reducendo valvae. Comparari 3dre / 3dree series. Proportionalem pressura reducendo valvae 3Drem-7x habet melius integrated sensoriis vel communicationis interfaces. Et core munus de valvae 3Drem-7x est control exitus pressura in electrica proportionalem modo. Potest consequi pressura ordinacione + unloading per tres-modo structuram (p → a, in → T). Proportionalem pressura reducendo valvae 3Drem-7x apta summus praecisione et summus dynamic hydraulicis imperium systems.

Product parametri proportionalem pressura reducendo valvae 3Drem-7x

Product parametri proportionalem pressura reducendo valvae 3Drem-7x

Features:

▶ III-modo version

▶ operatio per proportionalem solenoid cum rotatable coil

▶ pro Subplate Umbra

▶ Portus exemplar secundum ISO (IV) CI

▶ maximum pressura limitationem, libitum

▶ valvae et imperium electronics ex uno fonte

▶ Integrated Electronics (obe) (Type HD-3dre (M) E):

- Parva vestibulum Tolerantia de imperio valorem pressura curva

▶ Externae imperium electronics (Type HD-3dre (M)

▶ linear imperium valorem pressura proprium curva

Application:

Proportional pressure reducing valve 3DREM-7X is suitable for high-precision, high-dynamic, intelligent hydraulic systems, especially for the following occasions: occasions requiring electric proportional regulation + fast unloading, automated production lines integrated with PLC/PID controllers, and can still achieve reliable control in harsh environments (vibration, high temperature, explosion-proof).

Munus et sectionem proportionalem pressura reducendo valvae 3Drem-7x

Munus, sectioni

In valvae types 3dre (m) et 3dre (m) E, electrically gubernator, operated III-via pressura reducing valvulae cum pressura limitatione actuator.

Sunt enim reductionem (p to a) et limitationem (a to t) de systema pressura.

SECTUS

Valvulae consistant de duobus principalis coetus:

▶ PILot Imperium CYMBALON (I) cum proportionalem solenoid (II), optionally cum maximum pressura limitationem (XV)

▶ Main CYMBALON (III) cum Pelagus Imperium FUSOL (IV)

Munus

▶ imperium valorem-dependens occasum de pressura ad redigi in portum per per gubernator imperium valvae (I).

▶ cum depressurized Portus P, et Fontes (V) et (VI) tenere pelagus imperium spool (IV) in centralis situ.

Hoc modo, in satus sursum salire ad actuator impeditur.

▶ PILOT fluidum fluit a (VII) per fluxus moderatoris (VIII), per imperium camera (XI) ad IUGULUS Gap (IX), per lineam (X) ad Nulla pressura est duci ad Tank in nulla pressura.

Pressura reductionem

▶ constructum-sursum de gubernator pressura in imperium cubiculum (XI) sicut functio ipsius imperium valorem.

▶ pressura constructum-sursum in vere cubiculum (XIII) per COLLAND (XII) et motus de pelagus imperium spool (IV) ad dextram.

Hydraulicorum fluidum fluit P A.

▶ in actuator pressura in Portus A est available in vere cubiculum (XIV).

▶ augmentum in pressura in portum ad a paro pressura de gubernator imperium valvae (I) ducit ad motus de pelagus spool (IV) ad sinistram. Pressura in portum est fere idem cum set pressura ad gubernator imperium valvae (I).

Pressura limitationem

▶ Si pressura in Portus excedit in paro pressura de gubernator imperium valvae (I), pelagus potestate Spool (IV), quod movetur porro ad sinistram.

Hoc ▶ aperit nexu a to T et fines pressura pendente in Portus ad constituit imperium valorem.

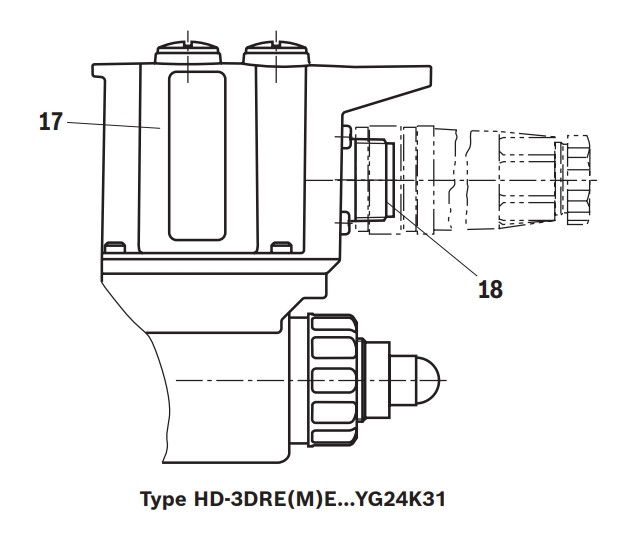

Type HD-3dree et HD-3Dreme (cum integrated electronics (obe))

Cum de function et posuit-sursum, hi valvulae correspondeatis genera HD-3dre et HD-3Drem.at in gubernator imperium valvae, ibi est autem habitationi (XVII) cum imperium electronics.

Supple et imperium valorem intentione applicantur ad iungo (XVIII).

In officinas, in mandatum valorem pressura curva accomodati cum paulo vestibulum tolerantia. Nam magis notitia, videatur Page IX.
